LENKENG LKV371 HDMI Extender Over Network Cable 120m

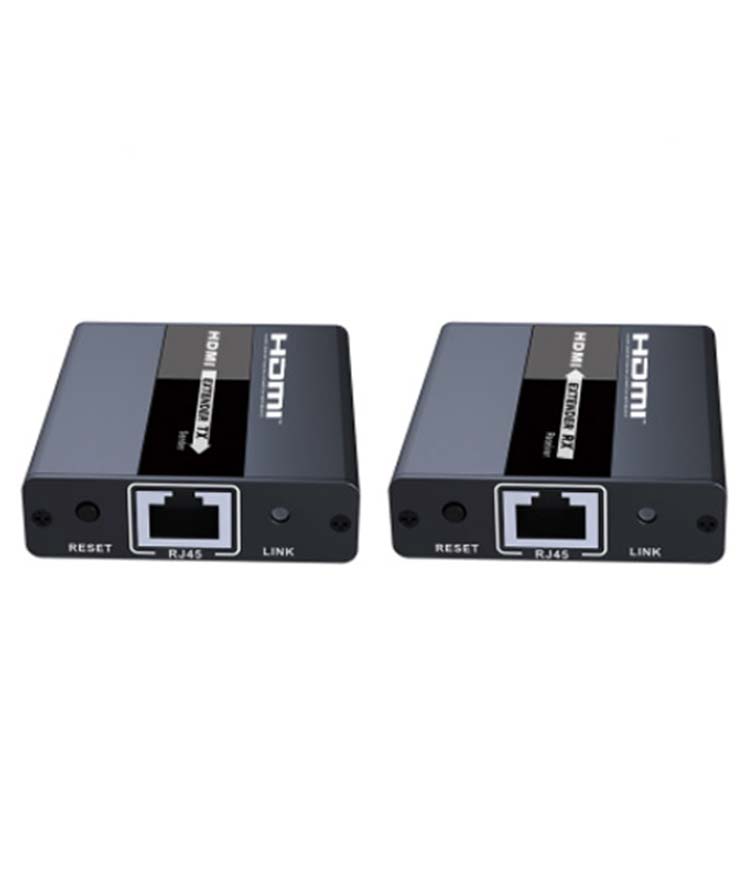

LENKENG LKV371 HDMI ExtenderThe LENKENG LKV371 HDMI Extender is a solution for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal over a signal CAT5/5e/6 network cable. It includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. Long transmission distance is up to 120 meters with zero latency. This HDMI Extender support IR passback for remote control source device from receiver site easily.This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage.FeaturesPlug and play, without installationUncompressed and zero latencySupport resolution is up to full HD 1080p@60HzCompliant with CAT5/5e/6 for long distance transmissionInclude a transmitter unit (TX) and a receiver unit (RX), working as a pairSupport IR passback for remote control source device to receiver site easilyTransmission distance up to 120m via CAT6 cable, 100m via CAT5E cable, 80m via CAT5 cableSpecificationsVoltage/CurrentDC5V/1APower consumptionTX: 2W     RX:＜2WHDMI complianceHDMI1.3HDCP complianceHDCP1.4HDMI resolution720×576@50Hz, 720×480@60Hz, 1280×720@60Hz, 1920×1080@60Hz, 640×480@60Hz, 800×600@60Hz, 1024×768@60Hz, 1280×800@60Hz, 1280×1024@60Hz, 1440×900@60Hz, 1680×1050@60Hz  Supports audio formatsPCMMaximum transfer rate10.2GbpsInput and output TMDS signal0.5～1.5Vp-p(TMDS)Input and output DDC signal5Vp-p(TTL)Input cable length≤8m(AWG24)Output cable length≤8m(AWG24)Transmission lengthCAT5: 80mCAT5E: 100mCAT6: 120mElectrostatic protection of the whole machine1a contact discharge level 3, 1b air discharge level 3, implementation of the standard: IEC61000-4-2Working temperature0～60℃Storage temperature-10～70℃Humidity (no condensation)0～90% Dimension69.57×58.80×16.10mmMaterialAluminium alloy material crystal panelTreatment processGrit blastColorBlackWeightTX:70g,   RX:70g
