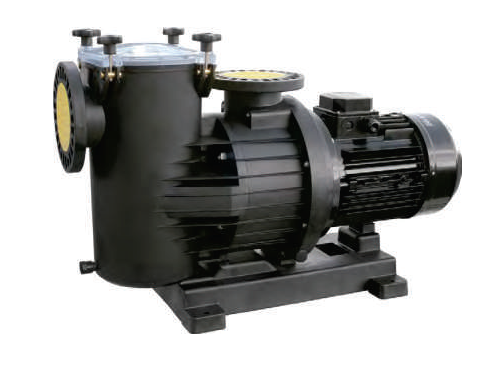

SELF PRIMING PUMP “MAGNUS”

• High-volume self-priming pump available in 2 and 4 poles versions ideal for larger filtration systems. Features large suction side pre-filter which together with excellent hydraulic performance ensures extremely high filtration capacity. together with its excellent hydraulic performance, gives a very large filtering capacity. • Filter with polycarbonate cover for easy viewing of pre-filter basket contents. • Features standard connection flanges which together with a broad base make the system especially robust. • Counter-flanges not supplied as standard (available on request). • Turbine available in 2 versions, Noryl or marine bronze, as per request. • Pre-filter body, pump body, volute, counter volute and cover in glass fibre loaded polypropylene resistant to pool chemicals. Pre-filter basket in polythene. Polycarbonate pre-filter cover with four-pin closure system. • Noryl impeller. Mechanical seal in ceramic carbon and AISI-316 stainless steel (ready to work with sea water). Screws in AISI-316 stainless steel. Shaft in AISI-316 stainless steel. • Enclosed asynchronous motor, with external ventilation. Protection grade IP-55. • Class F insulation. • Frequancy 50Hz. • Motor bearings greased for life and selected to ensure long duration and silent operation.
